Example 17

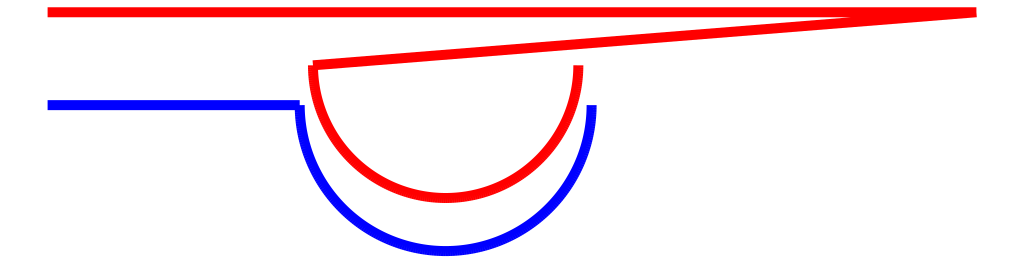

Example where DTW generates a different solution than discrete Fréchet
| P |
203 |
15.15753483707828 |
| Q |
202 |
5.355716391032997 |
| Fréchet |
2.9832867780352594 |
0 |
| VE Fréchet |
2.9832867780352594 |
455 |
Animation: Fréchet morphing
This is the animation of the morphing computed
that is both continuous and monotone.
Animation: VE Retractable Fréchet
This is the animation of the VE retractable morphing. It is potentially not monotone (but it is continuous.

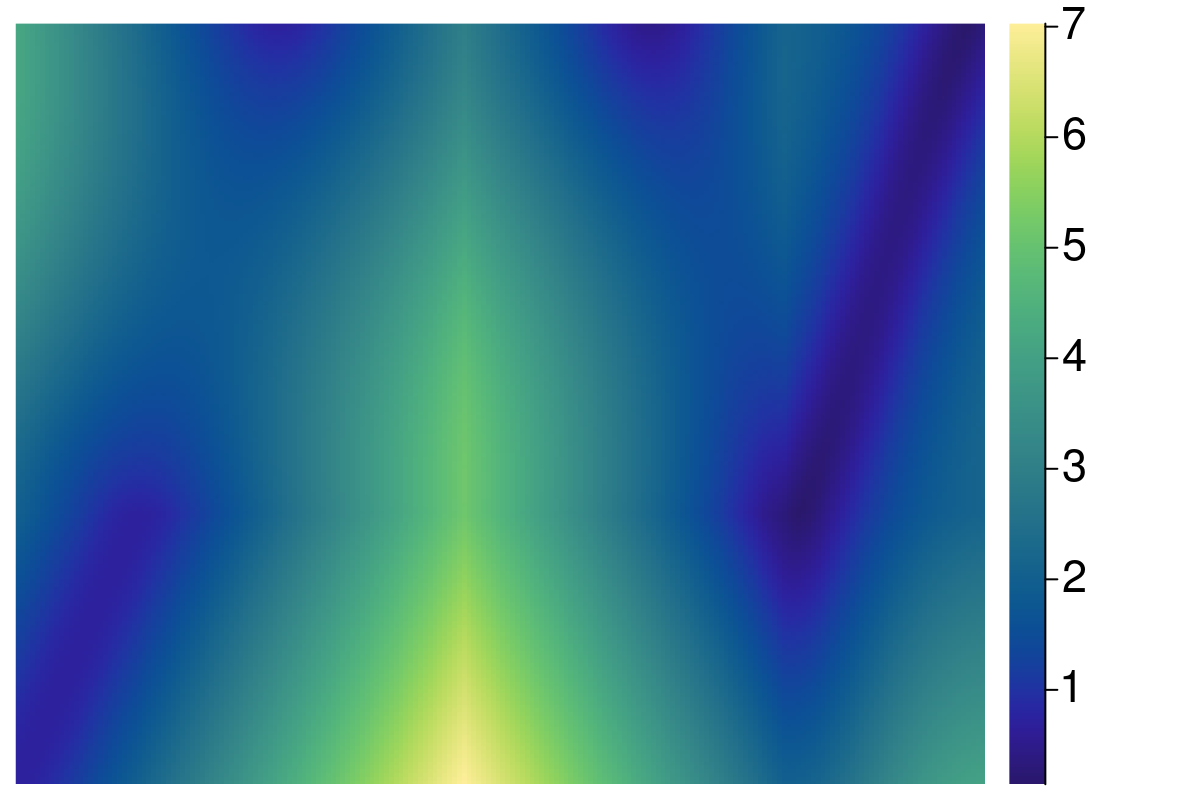

Free space diagram heatmap:
graph + free space
[PDF]
: graph
[PDF]

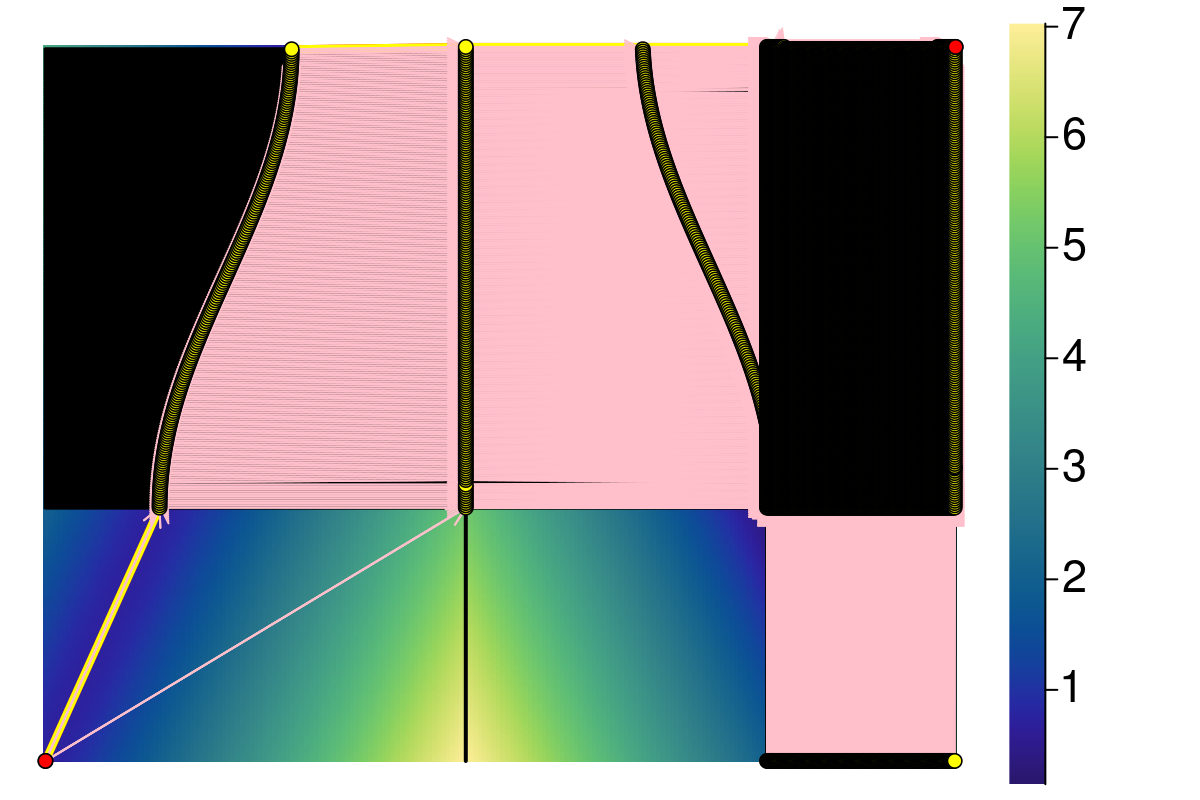

VE-Fréchet Retractable solution:
Monotonized...

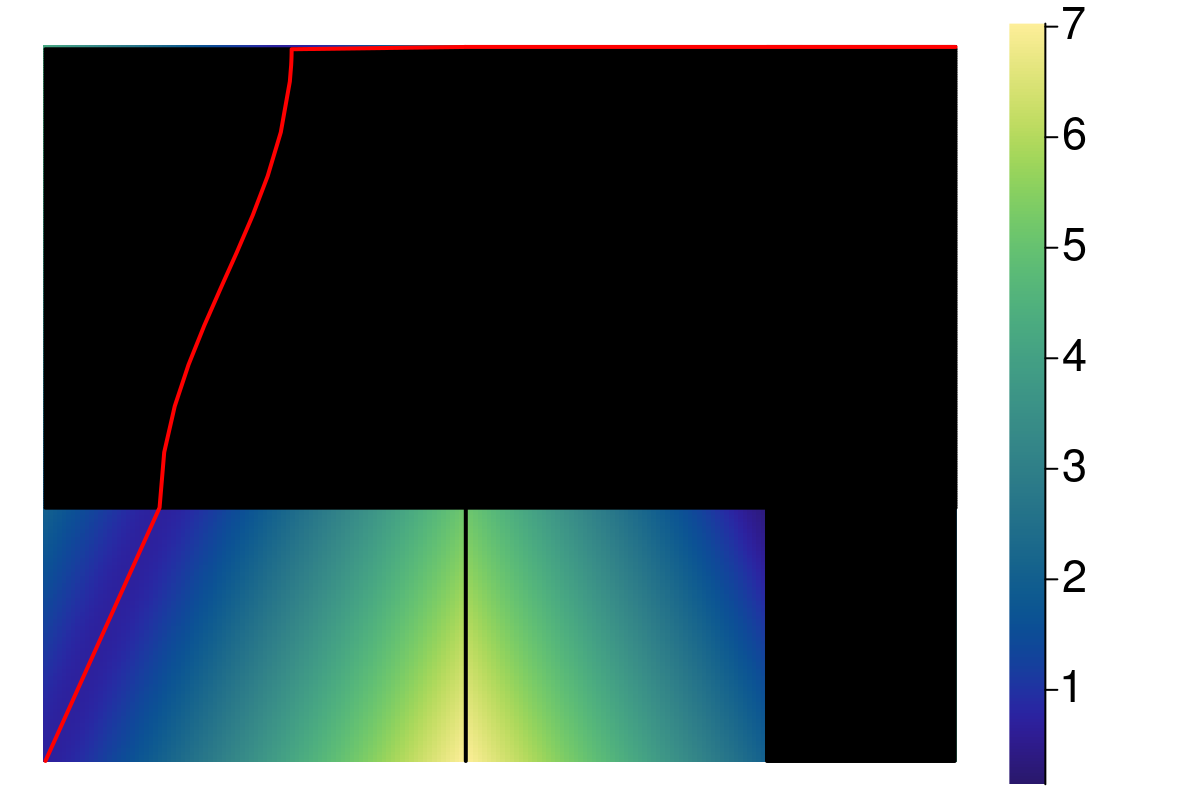

Fréchet cont+monotone solution:

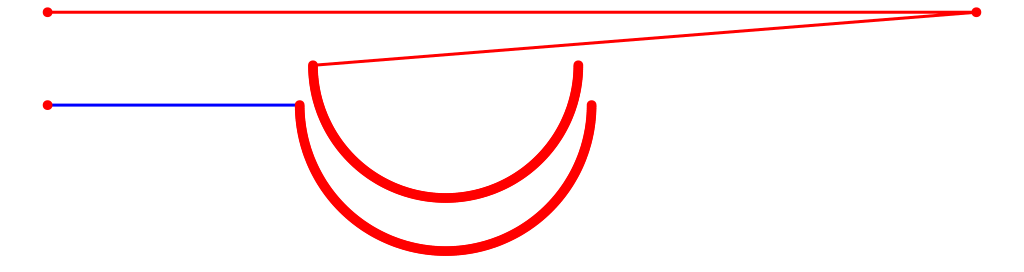

Discrete Fréchet
The resulting morphing - extended to continuous:
Specifically, to get a smooth animation, the
leash is shown as moving continuously, by
interpolating between the discrete locations.
The discrete retractable version
The discrete dynamic time warping
P # vertices: 203
P # vertices: 202
DFréchet iters : 41006
Retract DFréchet iters : 1344

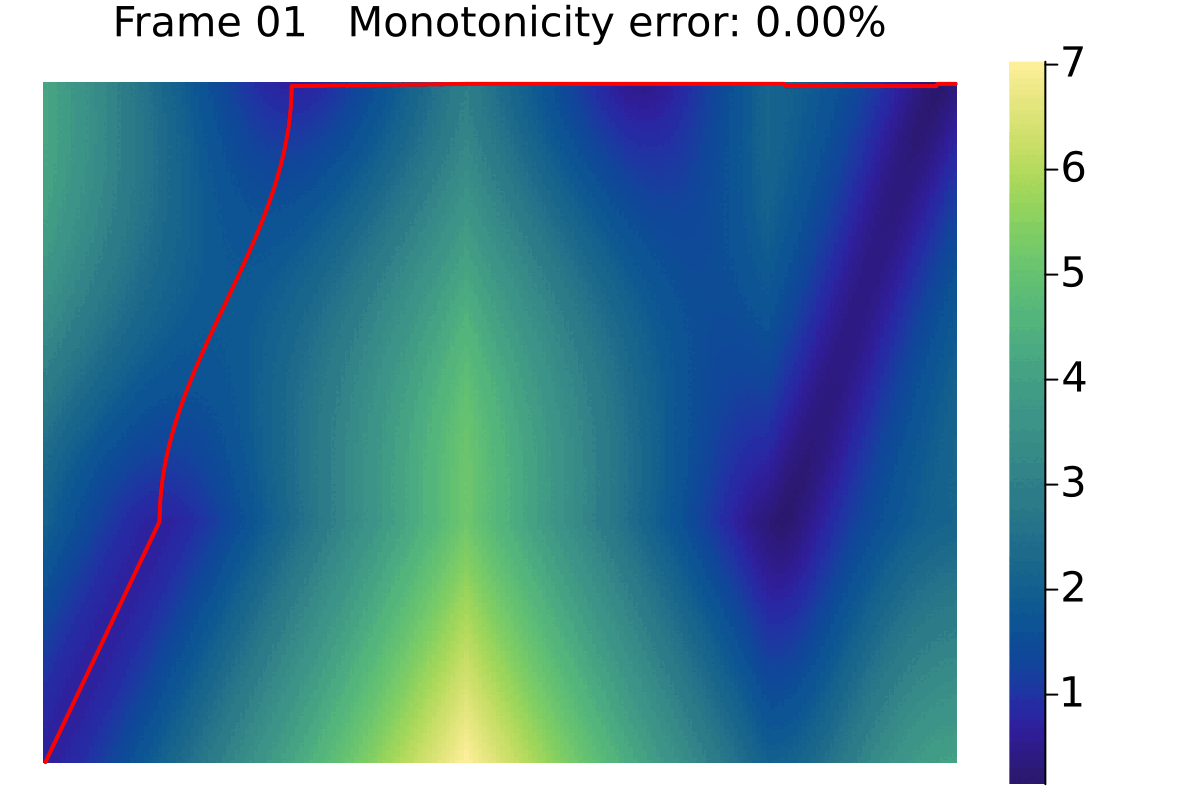

Refinement for removing monotonicity
By introducing vertices in the middle of parts of the curves that are being traversed in the wrong direction, one can refine the solution, till effectively reaching the optimal monotone solution. This process is demonstrated below. As one can see, the error is negligible after a few (say four) iterations. After that, it becomes a bit pointless.
We emphasize that a monotone morphing can
always
be extracted, by monotonizing the current
solution.
This is easy and fast to do, and is the error
accounted for in the below graphics.
More info
Animation: Fréchet morphing as morphing
